1. Product Overview

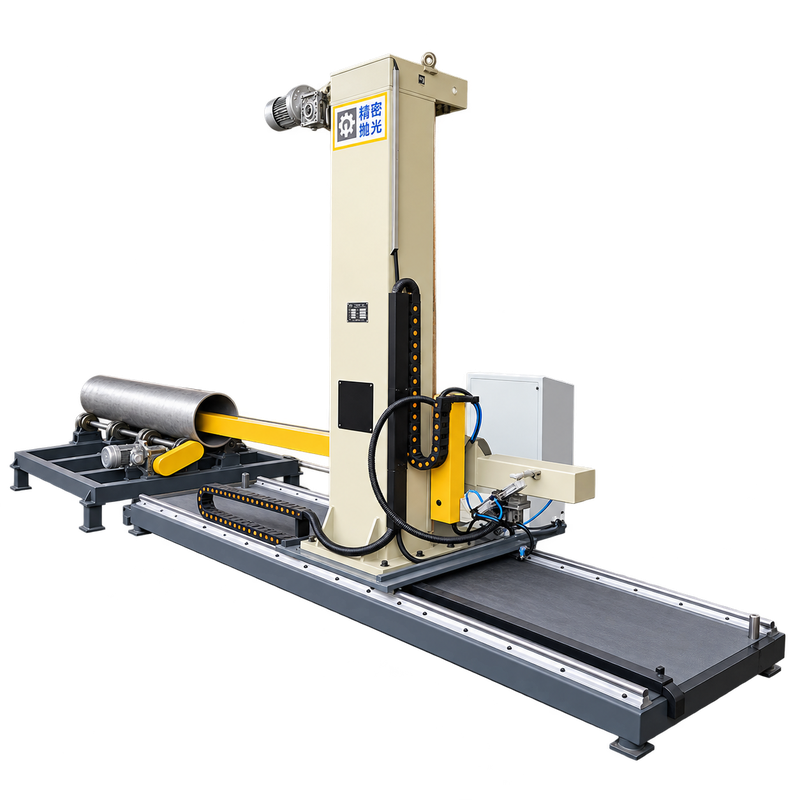

This External Polishing Machine is designed for polishing the outer surface of large-diameter metal pipes and cylindrical workpieces. It is widely used in stainless steel and carbon steel tube processing, including surface grinding, deburring, weld bead removal, and mirror polishing.
The system is equipped with a 7.5KW high-efficiency Wannan main motor (with inverter control) and a 4KW reducer, delivering stable and adjustable polishing power. Three heavy-duty support stands hold pipes up to 8 meters in length, and by rotating the workpiece, the machine can polish up to 12 meters in total.
The polishing head moves along a maximum 6000mm travel path, while the adjustable chuck system ensures secure clamping for different pipe diameters. A 100mm dust port is reserved for dust extraction, promoting a cleaner working environment.
2. Key Features
- Wide Processing Range: Suitable for pipe diameters from φ100mm to φ800mm and lengths from 1000mm to 12000mm.
- Strong Drive System: 7.5KW inverter motor and 4KW reducer for stable operation.
- Extended Travel Design: 6000mm polishing head stroke with double-end polishing capability (via workpiece rotation).
- Flexible Clamping System: Adjustable chuck fits various pipe sizes securely.
- Environmental Design: Equipped with φ100mm dust outlet for easy connection to dust collectors.
- Heavy-Duty Application: Supports steel pipes up to 10 tons and 30mm wall thickness.
- Applicable Materials: Stainless steel and carbon steel.
3. Technical Specifications
| Item | Specification |
| Pipe Diameter Range | φ100mm – φ800mm |
| Pipe Length Range | 1000mm – 12000mm |
| Max Workpiece Weight | 5 – 10 tons |
| Max Wall Thickness | ≤30mm |
| Applicable Materials | Stainless steel, carbon steel |
| Main Motor Power | 7.5KW, National Standard Motor (inverter) |
| Reducer Motor | 4KW |
| Max Polishing Stroke | 6000mm |
| Support Stand Quantity | 3 (Total Support Length: 8m) |
| Sandblets Size | 2540*50mm |
| Dust Port Diameter | 100mm |
4. Application Industries
- Stainless steel pipe fabrication
- Heat exchanger and pressure vessel production
- Heavy-duty cylindrical component polishing
- Oil & gas pipeline pre-treatment
- Shipbuilding, nuclear, and petrochemical industries
