Is heavy slag removal the same as fine deburring?

No. The primary hammer stage acts on attached cutting deposits. Fine abrasive deburring and edge rounding are separate functions that depend on the additional stations supplied.

Is the 1000BRB the same as a rotary hammer machine?

No. The 1000BRB technical arrangement uses sanding belts and brushes and describes removal of surface slag particles. The catalogue HBBB arrangement includes a rotary hammer stage; its heavy-dross role should not be inferred from a BRB specification.

Which sample plates should be tested?

Include typical production parts, the most strongly attached deposits and the smallest or least flat plates in the proposed range. Identify the deposited face and the required final edge condition.

Will the hammer stage clean oxide from every cut face?

Not necessarily. Protruding slag and an oxide film are different conditions. Inspect remaining contamination and confirm a separate reachable cleaning method where the next process requires it.

Can the process be used without reviewing part support?

No. Plate dimensions, flatness, residue location and contact area influence how the part is held and presented. Confirm transport and hold-down for the selected machine before approving the setup.

Slag Removal Machine

Primary slag removal for plasma- and oxyfuel-cut plate components before fine deburring and edge preparation.

Incoming condition: Strongly attached cutting dross on accessible plate edges
Primary stage: Rotary hammer treatment in a selected hammer-and-belt arrangement
Part review: Thickness, dimensions, flatness and residue location
Finished condition: Inspect remaining burrs and specify follow-up stages

Evaluate both typical and difficult deposits on sample plates. Bulk slag removal does not automatically deliver a final rounded or oxide-free edge.

Inquire Now

Slag Removal for Plasma and Oxyfuel Plate Cutting

Plate-cutting subcontractors and fabrication shops often receive parts with hard cutting deposits attached along the lower edge. Before fine grinding, bending or downstream preparation, the bulk dross needs a process matched to its attachment and accessibility. A rotary hammer stage is intended for this primary cleanup rather than for the final cosmetic finish.

Start with sample plates from the actual cutting process. Deposit height and attachment can vary within a batch, so a cleanly cut demonstration part is not enough to establish the process for heavily contaminated production parts.

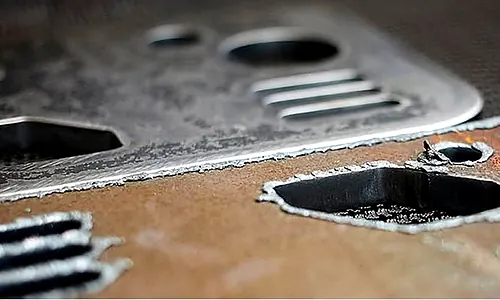

Cut metal parts showing rough residue around edges and openings — Cut-edge condition reference. Residue height, attachment and access must be assessed on the actual plate.

Rotary Hammer and Abrasive Stages

Rotary hammer tools act on accessible protruding deposits to break away attached slag. The catalogue HBBB arrangement combines a rotary hammer stage with subsequent abrasive-belt processing. This is a different mechanism from the wide-belt 1000BRB arrangement, whose technical description includes surface slag particles but does not establish equivalent heavy-dross performance.

The selected hammer engagement, transport support and pass sequence must suit the plate and residue. Confirm which face must be presented to the tool and whether the perimeter, cutouts or recessed features are reachable. Removing the bulk deposit may leave fine burrs and sharp edges for a subsequent station.

Parts and Preparation Needs

Plasma-cut plate components: assess dross on the exposed perimeter and accessible openings before fine abrasive treatment.
Oxyfuel-cut fabricated parts: review strongly attached deposits and the final edge requirement for the next operation.
Mixed fabrication batches: group parts by thickness, flatness and deposit condition so the trial represents the real production mix.

Define the Incoming Plate

Check	Reason
Cutting method and material	Identifies the residue and required processing approach.
Plate dimensions, thickness and flatness	Determines transport support and machine suitability.
Slag height and attachment	Guides hammer selection, engagement and pass count.
Residue location	Confirms which face and contours require access.
Required final edge	Defines follow-up deburring, rounding or surface preparation.

Evaluate the Complete Route

Photograph and identify the deposited face and the worst attached residue before the trial.
Inspect after primary hammer treatment for remaining deposits, edge damage and part movement; then inspect again after any abrasive stages.
Agree whether the required result is only bulk slag removal or also fine deburring, rounding and a specified face texture.
Check the smallest-part support, loading/unloading method, electrical supply and extraction arrangement for the actual machine.

The current application page does not define one fixed working width, thickness range or output. The catalogue HBBB family contains model-specific data; use the confirmed selected model for purchasing and installation rather than applying another deburring machine's specification.

What Comes After Slag Removal

Primary slag removal is not a promise of a ready-to-coat or ready-to-weld edge. Examine remaining fine burrs, corners and surface contamination against the downstream drawing and preparation requirements. Hammer treatment does not by itself establish a precision bevel, corrosion protection or complete oxide-film removal.

Use deburring for remaining raised metal and edge rounding for a defined edge break. Assess remaining oxide on the required face or cut edge with oxide layer removal, with tooling access confirmed separately.
